Beskrivelse

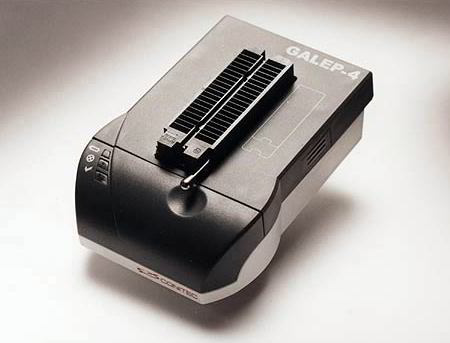

USED GALEP-4 Low-Cost Portable Device Programmer with 40 universal pin drivers and LPT port. Inklusiv Parallel kabel og strømforsyning. Se mere på GALEP-4 . Virker fint med ældre PC-er med Windows XP og parallel printerport.
System Requirements:
Parallel printer port or PCI / Express printer card.
32-bit Windows OS (Win95 / 98 / ME / NT4 / 2000 / XP / Vista 32 Bit / Win7 32 Bit)
Please note: parallel port device programmers control the timing via software and thus require a 32 bit operating system. For operating GALEP-4 on a 64 bit Windows PC you have to use a virtual 32 bit OS,
Pin Drivers
The GALEP-4 carries a separate universal pin-driver for each of the 40 socket pins. A special pin driver IC guarantees precise current control and perfect waveform integrity. GALEP-4’s pin driver design corresponds to that usually found in far more expensive programmers.
Low-Voltage GALEP-4 pin drivers feature true level-shifters and comparators, guaranteeing clean signals right down to 1.3 volts. The Galep-4 comparators allow measurement of the voltage on any of the 40 pins within a range of 0 to 25 volts with a precision of 100 mV. This can be used to precisely determine high and low levels at the component’s output pins.
Technical Specifications:
– Pocket sized, ultra-portable format: only ca. 80 x 115 x 33 mm
– Programs 8-bit and 16-bit EEPROM’s up to 8 MBit,
– normal and serial EEPROM’s, Flash-EPROM‘s
– Programs GALs / PALCEs
– Programs all common microcontrollers
– Easy PC printer port connection
– Automatic Split/shuffle function for 8-, 16- and 32-bit target systems
– Supports Hex, Jedec and Binary file formats
– Integrated hex and fusemap editor
– Flexible pin driver technology
– Download software
